Description

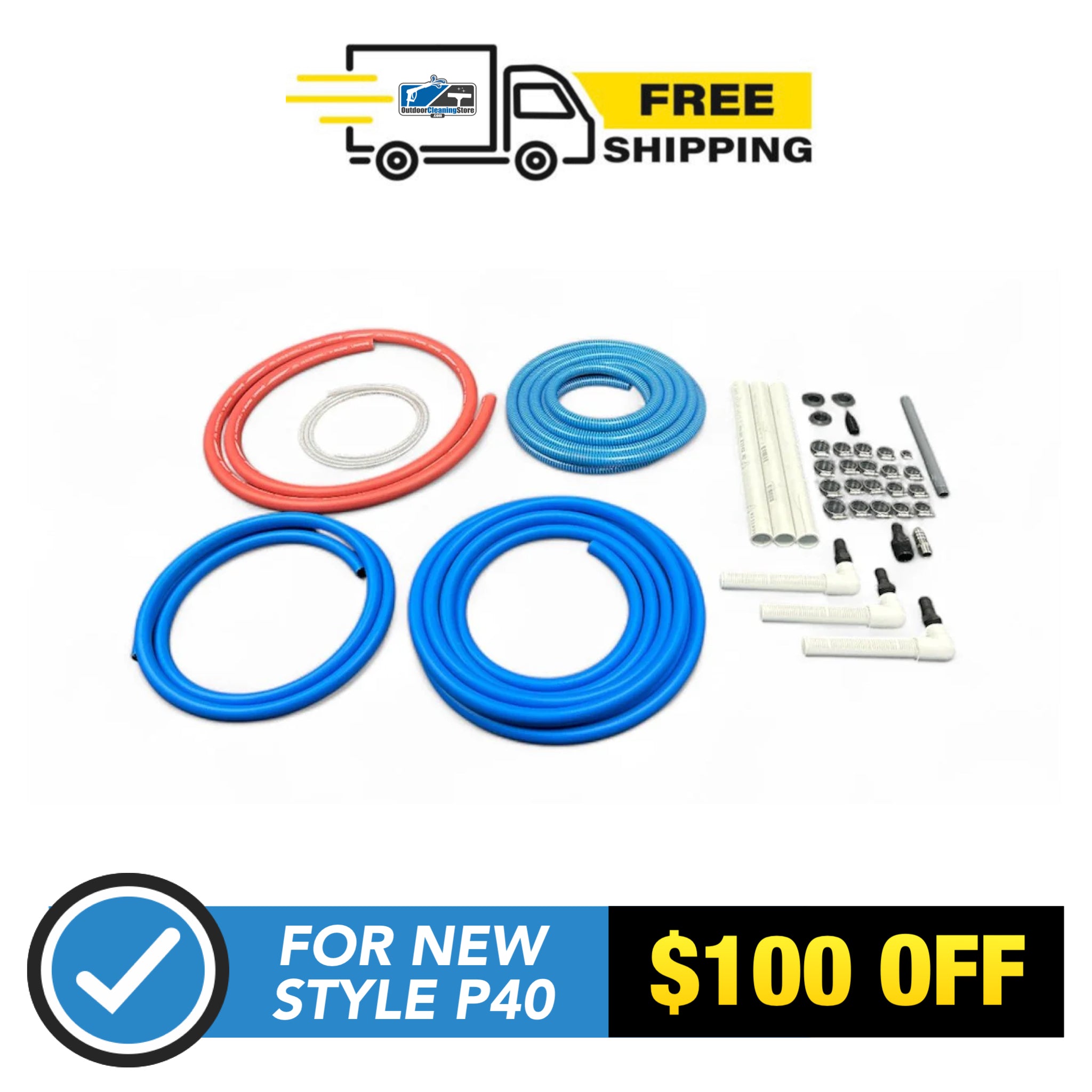

This kit includes nearly everything you need to plumb a soft wash system around a P40 pump.
Not Included in this kit:
- The P40 Pump
- The Mixer Manifold
- The 3-Way Rinse Valve ( Optional )
It's a well-organized package with all major components for setting up suction, delivery, bypass, and soap integration in your soft wash setup.
This Kit Includes the Following Items:
Hoses:
-
Suction Lines (SH, Water, Rinse)
-
Qty/Length: 30ft of 3/4" suction hose
-
Purpose: Connects to 3-Way Rinse Valve (valve not included)
-
Note: You may have extra—good for spares or flexibility
-
Soap Line
-
Qty/Length: 10ft of 1/4" clear poly braid hose
-
Purpose: Carries soap to the mixing system
-
Mixer to Pump
-
Qty/Length: 10ft of 1" Polyair hose
-
Purpose: Outlet of mixer manifold to P40 pump inlet
-
Pump to Hose Reel
-
Qty/Length: 10ft of 3/4" Polyair hose
-
Purpose: Carries fluid from pump outlet to hose reel inlet
-
Bypass Line
-
Qty/Length: 25ft of 3/4" Polyair hose
-
Purpose: Returns flow from the system back to the mixer manifold
Fittings And Filters:
-
Tank Entry Seals
-
Qty: 3 Uniseals (3/4") — requires 1.25” hole
-
Purpose: For hose entry into tanks without using bulky fittings
-
Bleach Filters
-
Qty: 3 built-in PVC bleach filters with 3/4" Banjo Hose Barbs
-
Purpose: Keeps debris out of SH, water, and rinse suction lines
-
Soap Filter
-
Qty: 1 poly filter for 1/4" soap line
-
Drop Sticks
-
Qty: 3 × 1.25” x 18" white PVC drop sticks (for bleach filters)
-
Qty: × 1/2” x 12" grey threaded PVC drop stick (for soap filter)
-
Purpose: Keeps filters at tank bottoms
Adapters And Barbs:
-
1 × 1” MPT to 3/4” HB (for bypass line at mixer manifold)
-
1 × 1/2” MPT to 3/4” HB stainless steel (for hose reel inlet from pump outlet)
Hose Clamps:
-
Qty: 4 - #16 Stainless Hose Clamps for the Pump to P40 inlet (2 per end)
-
Qty: 8 - #12 Stainless Hose Clamps for the Bypass line & Pump to hose reel (2 per end)
-
Qty: 8 - #12 Stainless Hose Clamps for the Mixer & Rinse Valve (extra included)
-
Qty: 1 - # Stainless Hose Clamps for the Soap Line
Do not use hose clamps inside the tanks. Instead, heat the hose slightly and push it onto the barbs for a tight seal.
