AR RTX70 pump 17GPM @ 3000psi

Description

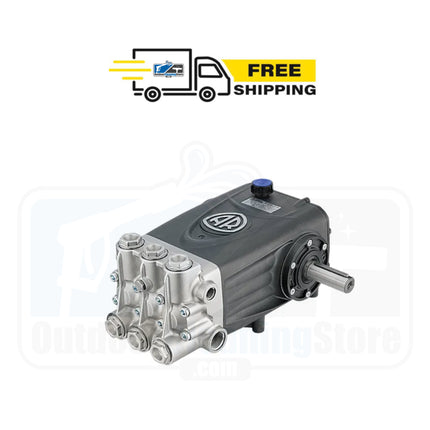

The AR North America RTX70 is a reliable triplex plunger pump delivering up to 1450 RPM and 18.5 GPM. The pump is designed for maximum longevity, including a high-strength steel pump shaft and low friction zinc-aluminum alloy connecting rods.



Easily connect it to your system via the 1" female inlet and 1/2" female outlet - it's a great choice for industrial cleaning applications!



Features:

  • Maximum flow: 18.5 GPM
  • Maximum pressure: 2000 PSI
  • Maximum speed: 1450 RPM
  • Maximum temperature: 140° F
  • Oil capacity: 76 oz.
  • Stroke: 23 mm
  • Bore: 30 mm diameter
  • Three-piston plunger design
  • Inlet: 1" female
  • Outlet: 1/2" female
  • Die-cast aluminum alloy pump body and cover
  • Rear cover features oil drain outlet
  • High-strength steel shaft
  • Oversized friction bearings
  • One-piece ceramic pistons
  • Double gasket sealing system
  • Intake and delivery valve plugs
  • AR North America item #RTX70
  • Weight: 72 lbs.



    Product form

    The AR North America RTX70 is a reliable triplex plunger pump delivering up to 1450 RPM and 18.5 GPM. The... Read more

    $2,310.00

      Description

      The AR North America RTX70 is a reliable triplex plunger pump delivering up to 1450 RPM and 18.5 GPM. The pump is designed for maximum longevity, including a high-strength steel pump shaft and low friction zinc-aluminum alloy connecting rods.



      Easily connect it to your system via the 1" female inlet and 1/2" female outlet - it's a great choice for industrial cleaning applications!



      Features:

      • Maximum flow: 18.5 GPM
      • Maximum pressure: 2000 PSI
      • Maximum speed: 1450 RPM
      • Maximum temperature: 140° F
      • Oil capacity: 76 oz.
      • Stroke: 23 mm
      • Bore: 30 mm diameter
      • Three-piston plunger design
      • Inlet: 1" female
      • Outlet: 1/2" female
      • Die-cast aluminum alloy pump body and cover
      • Rear cover features oil drain outlet
      • High-strength steel shaft
      • Oversized friction bearings
      • One-piece ceramic pistons
      • Double gasket sealing system
      • Intake and delivery valve plugs
      • AR North America item #RTX70
      • Weight: 72 lbs.
